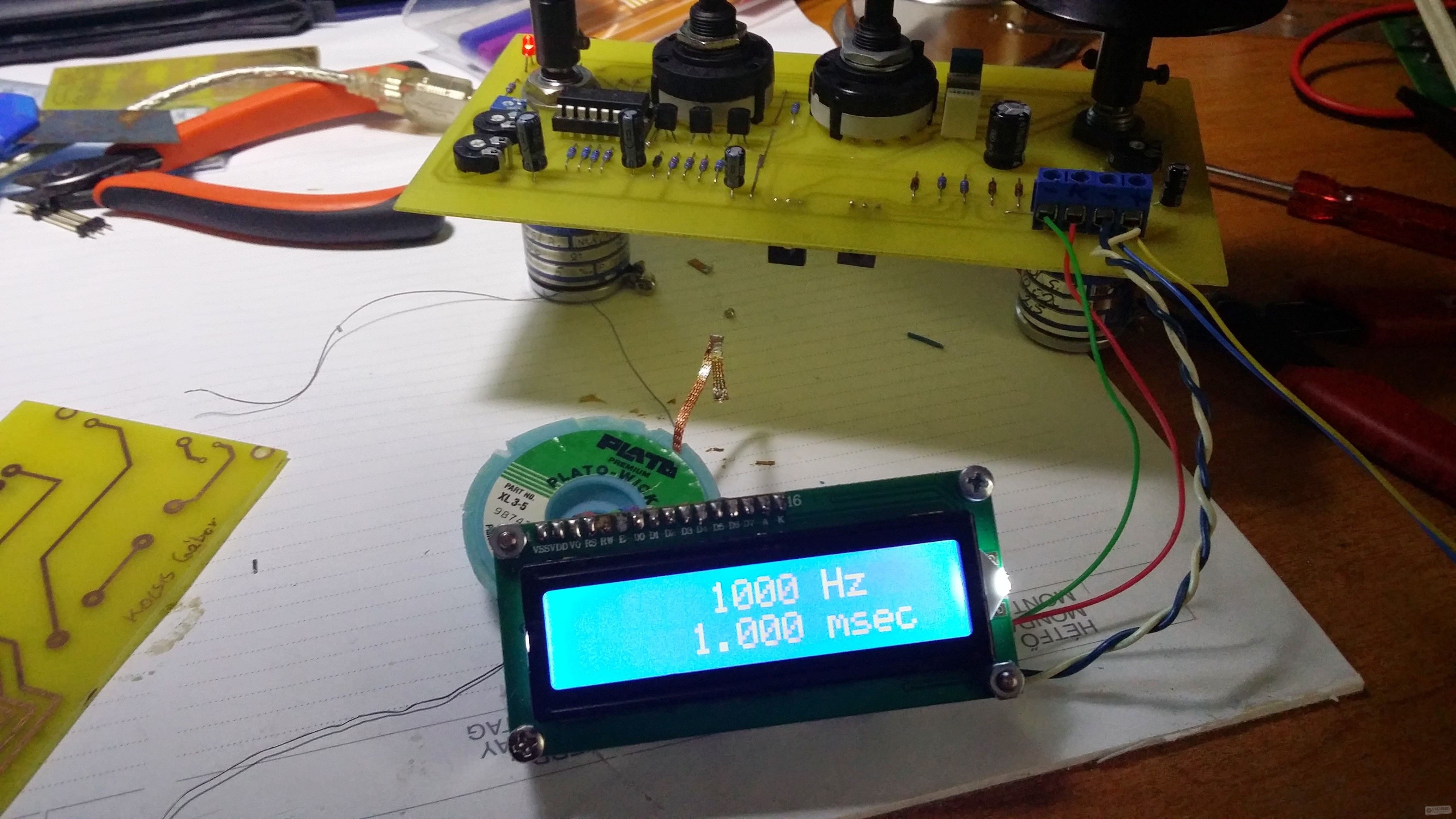

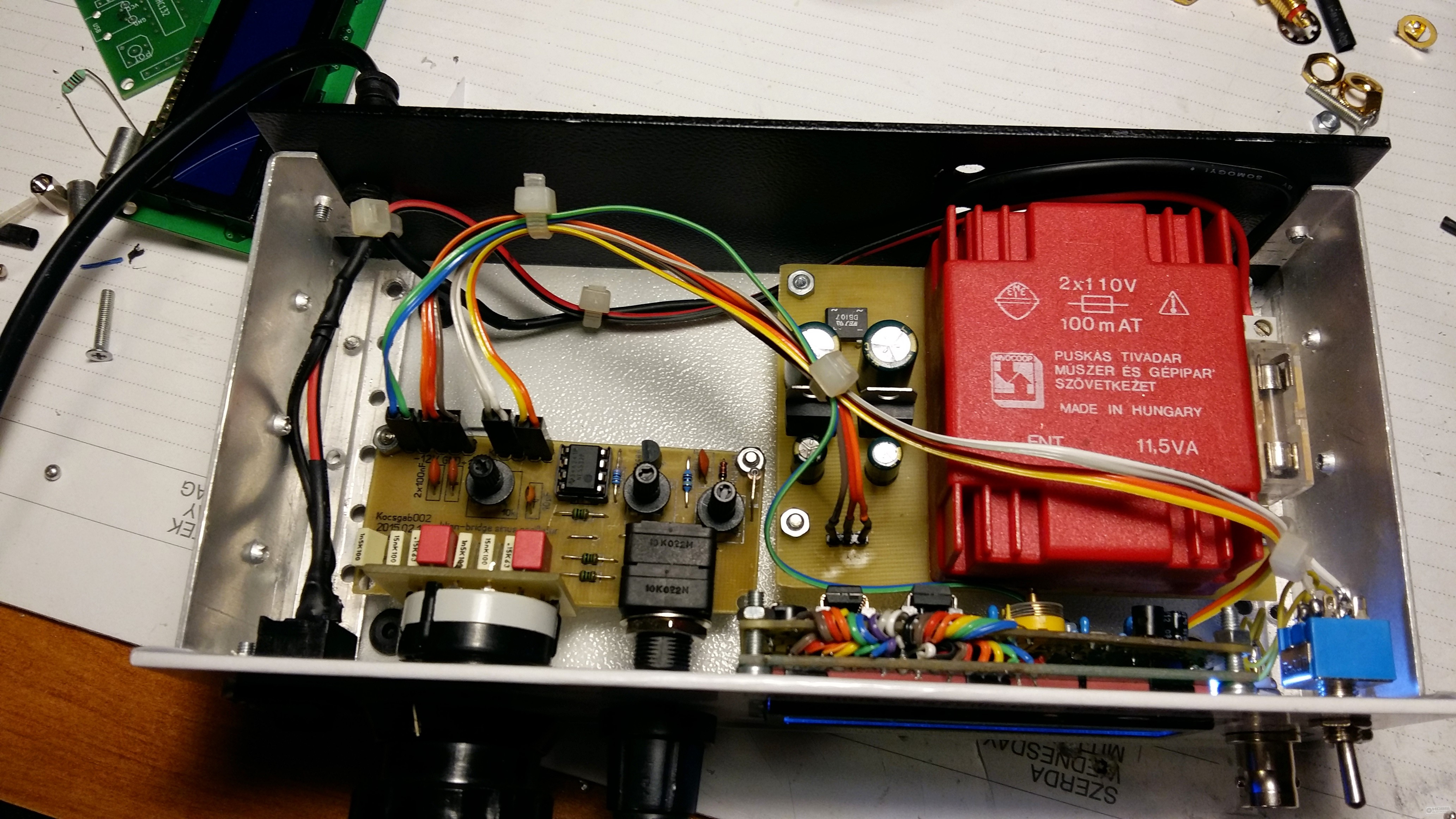

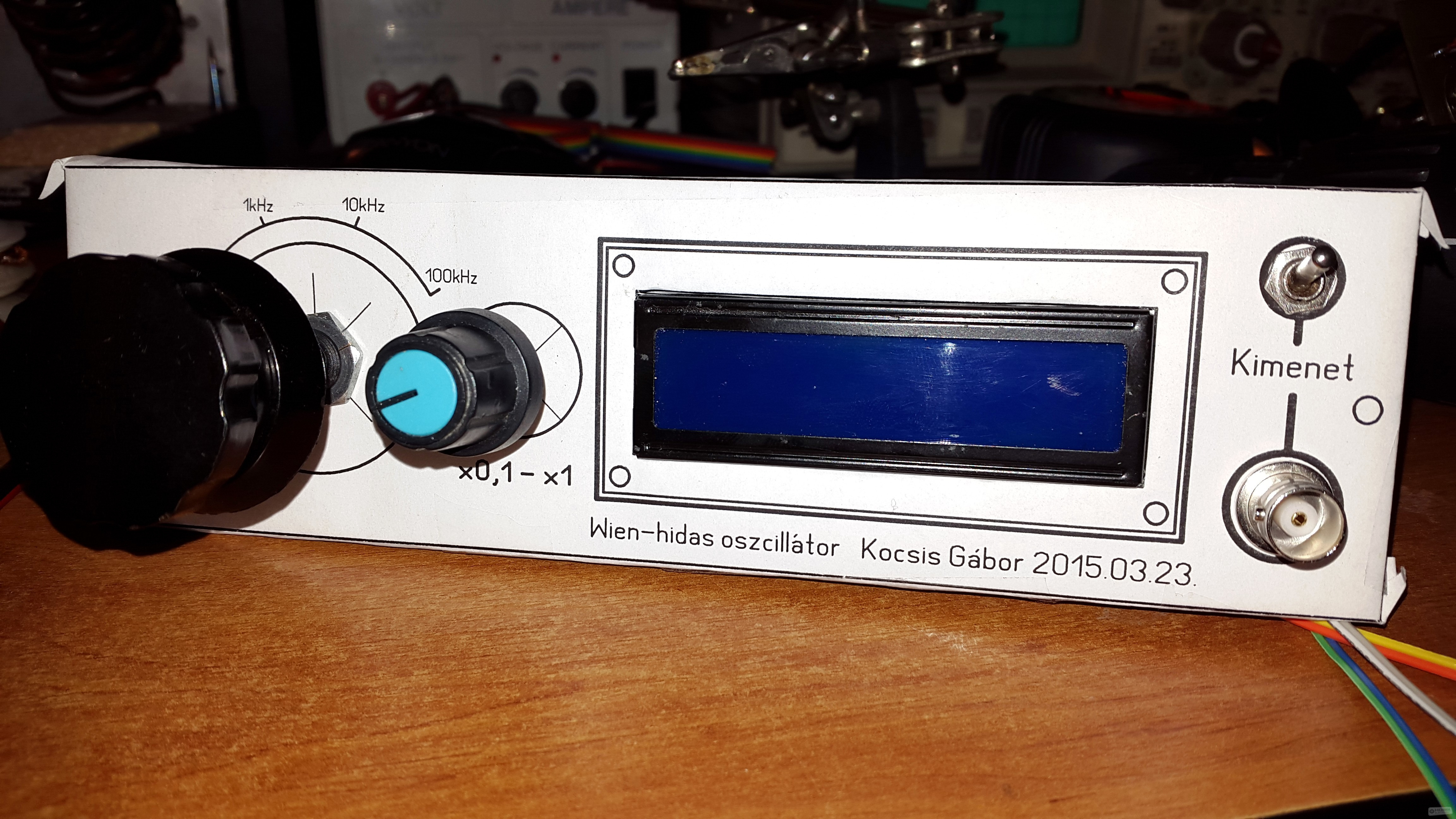

Nos, a műszerünk lassan alakot ölt, megterveztem hozzá a NYÁK-ot, összeraktam, hozta a papírformát. Hozzátettem egy jól megtervezett tápegységet, és egy LCD kijelzős frekvenciamérőt. Belepakoltam mindezt egy aluminium műszerdobozba, és máris használatra kész a kis oszcillátorunk. Alább látható pár kép az építés folyamatáról és a végeredményről:
![pcb_index.jpg pcb_index.jpg](/cikkek/files/1685/pcb_index.jpg)

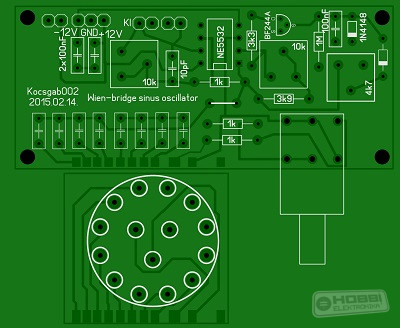

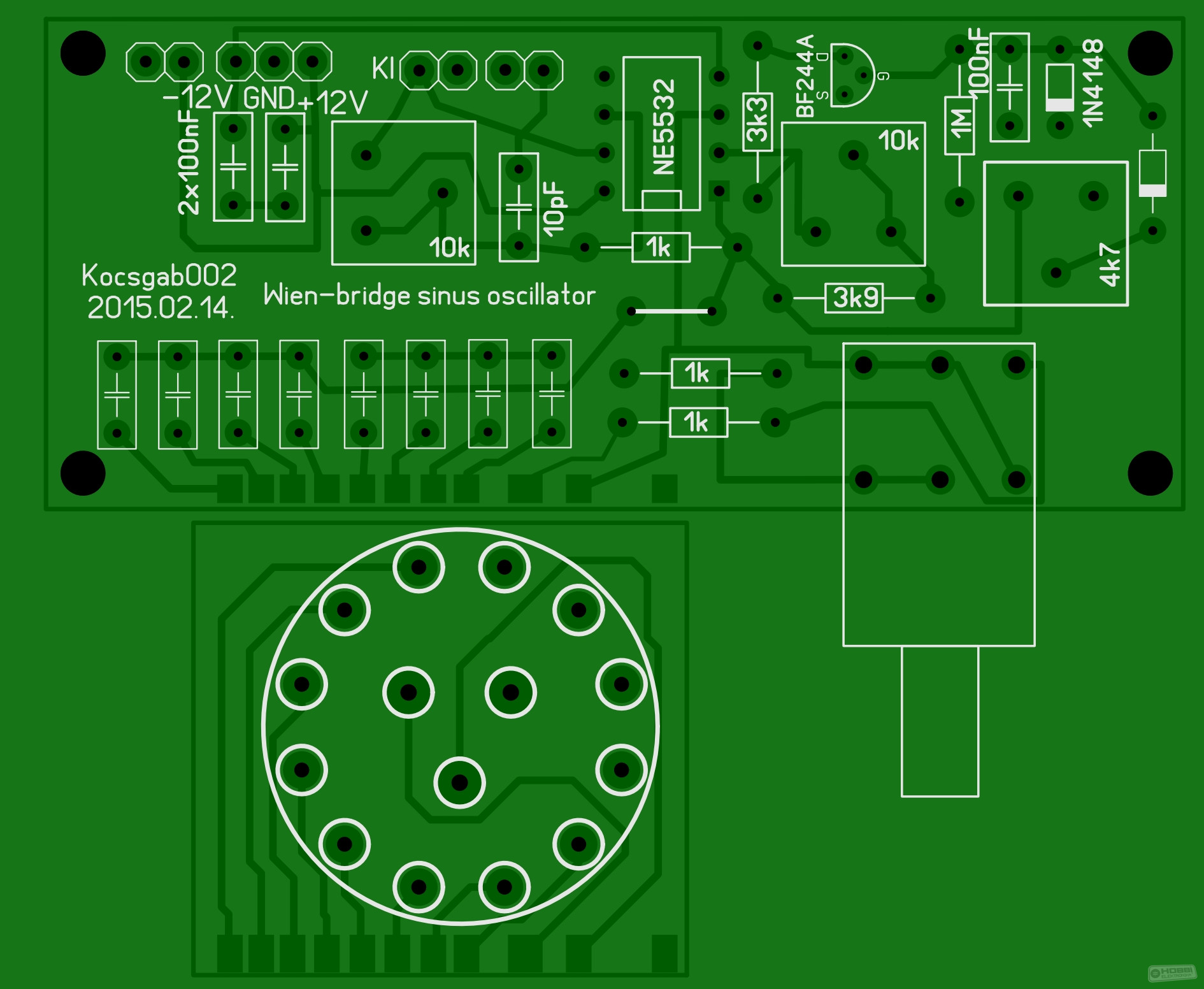

NYÁK-terv letöltés *.lay6 formátumban

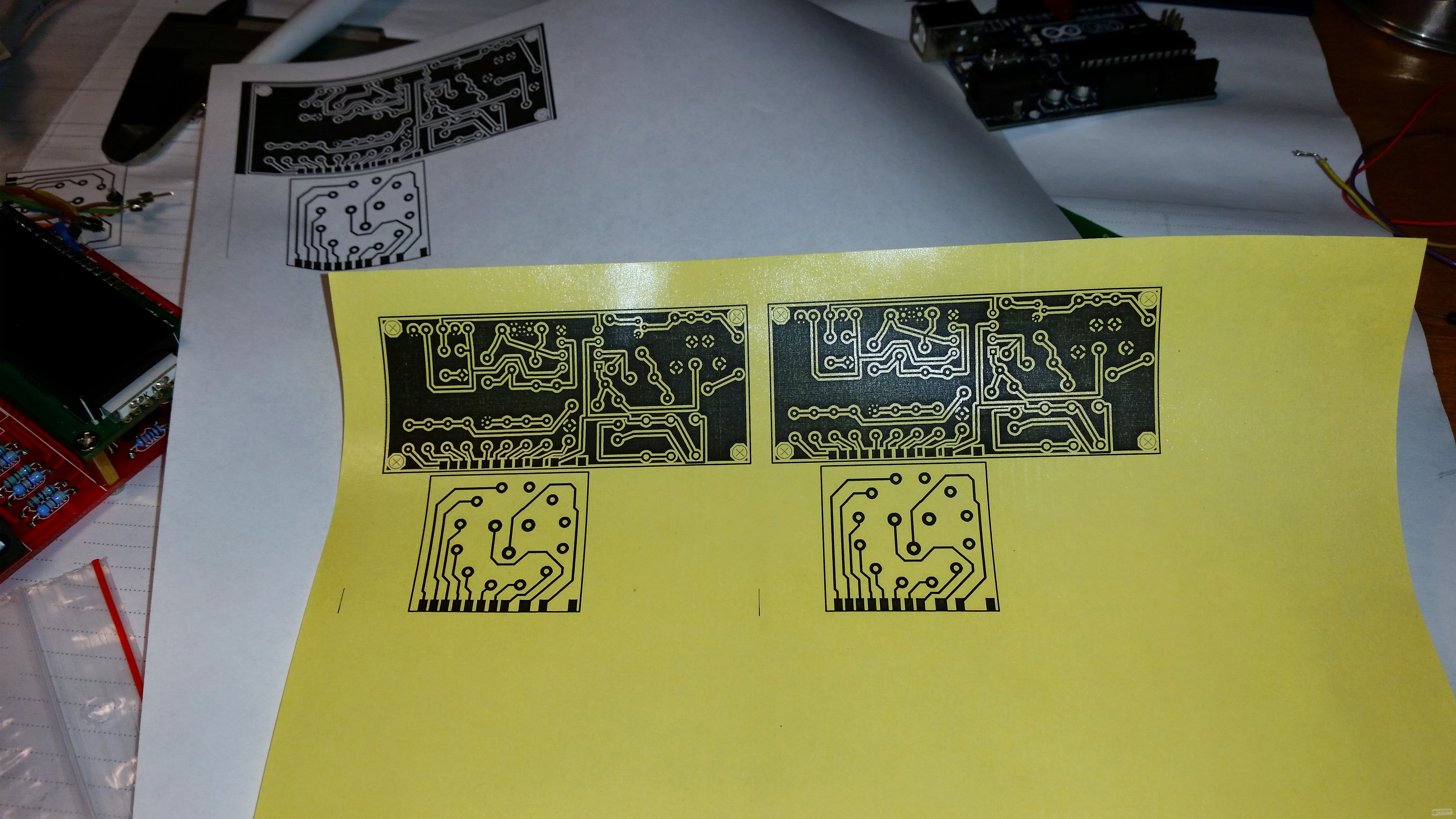

![20150308_085720_index.jpg 20150308_085720_index.jpg](/cikkek/files/1685/20150308_085720_index.jpg)
![20150308_132024_index.jpg 20150308_132024_index.jpg](/cikkek/files/1685/20150308_132024_index.jpg)

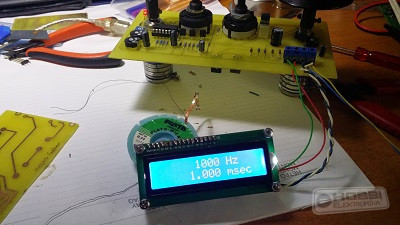

![20150126_123640_index.jpg 20150126_123640_index.jpg](/cikkek/files/1685/20150126_123640_index.jpg)

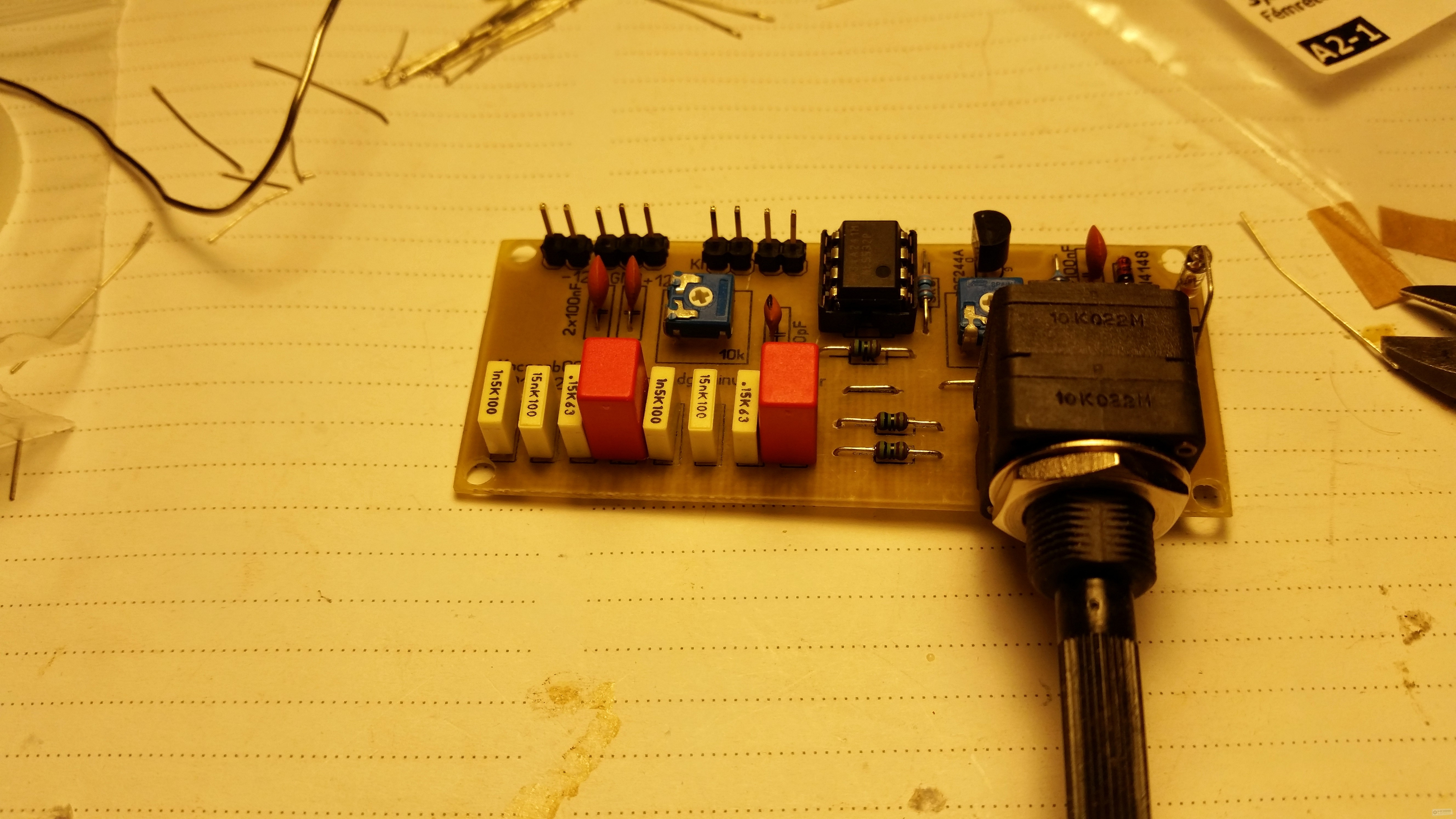

![20150308_143306_index.jpg 20150308_143306_index.jpg](/cikkek/files/1685/20150308_143306_index.jpg)

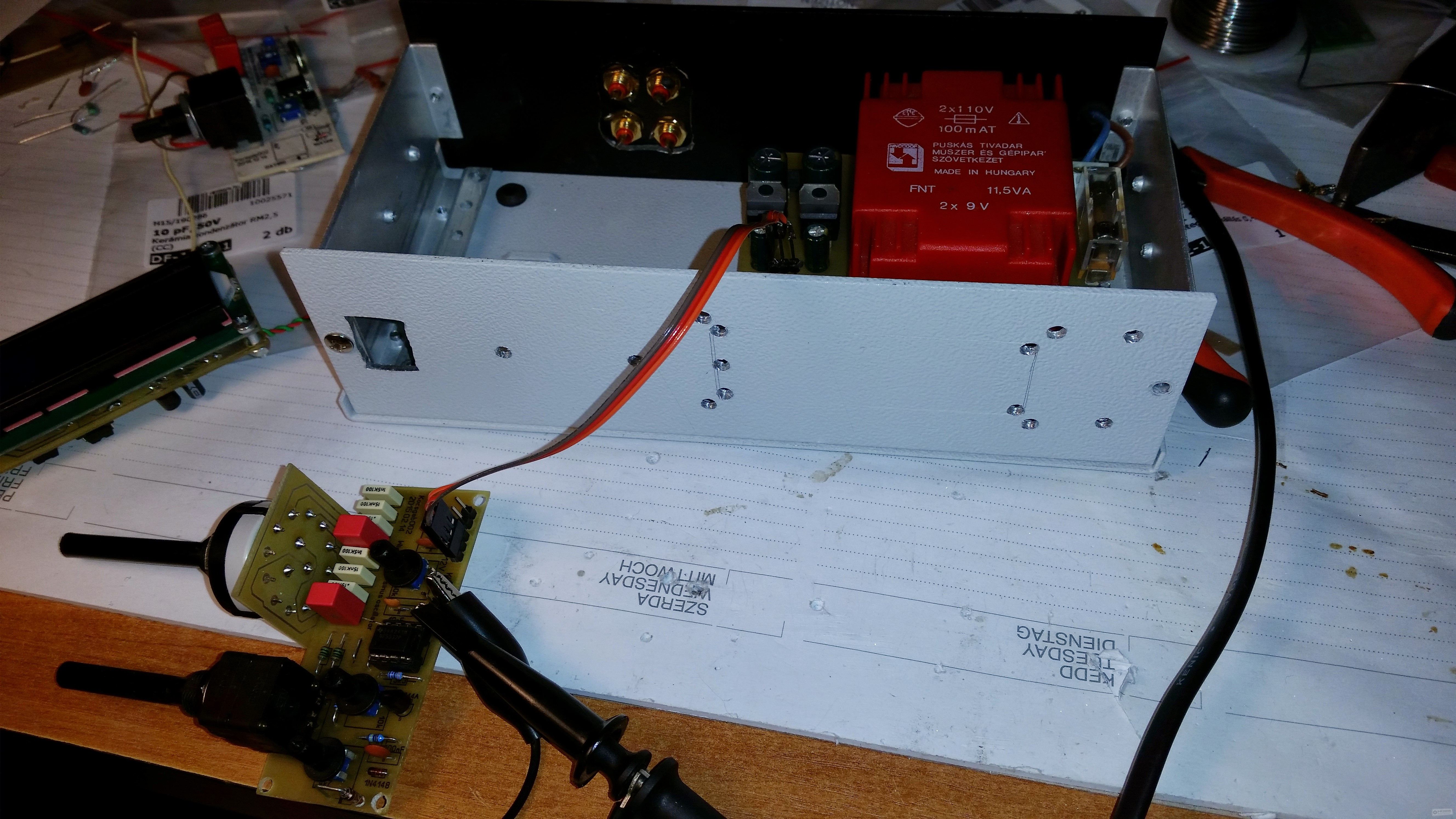

![20150308_194546_index.jpg 20150308_194546_index.jpg](/cikkek/files/1685/20150308_194546_index.jpg)

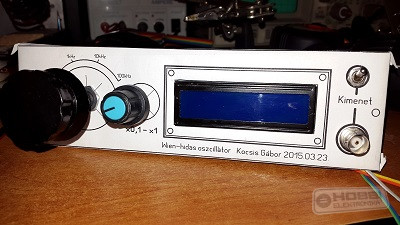

![20150323_225115_index.jpg 20150323_225115_index.jpg](/cikkek/files/1685/20150323_225115_index.jpg)

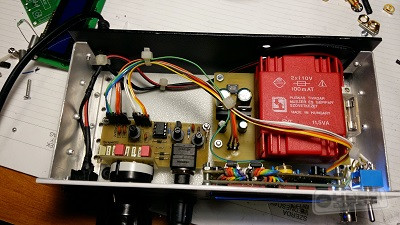

![20150404_223943_index.jpg 20150404_223943_index.jpg](/cikkek/files/1685/20150404_223943_index.jpg)

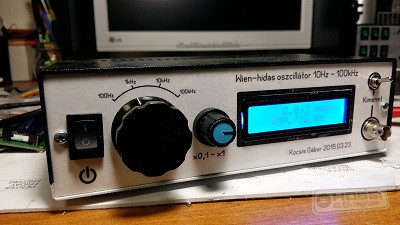

![20150404_223848_index.jpg 20150404_223848_index.jpg](/cikkek/files/1685/20150404_223848_index.jpg)

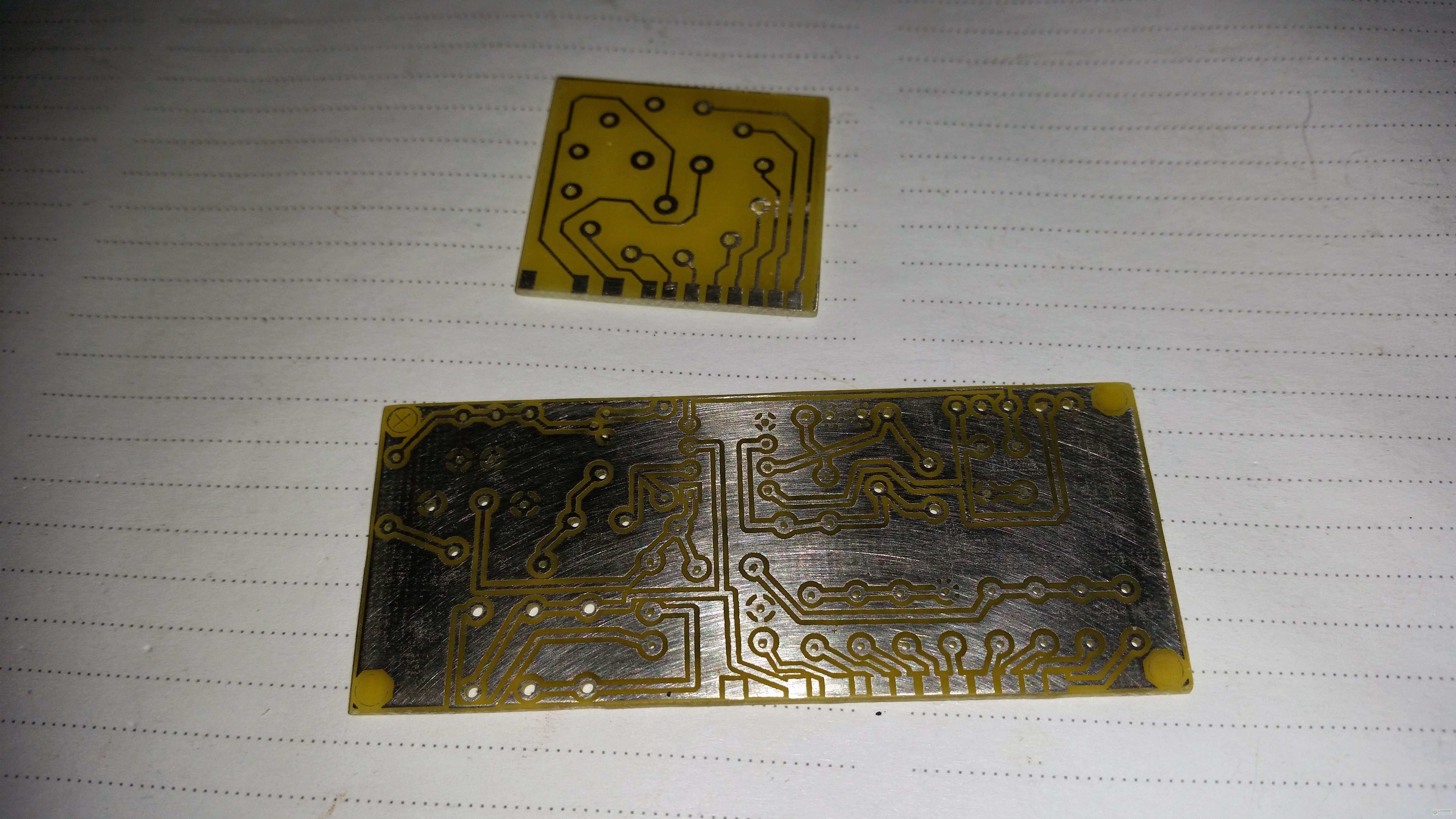

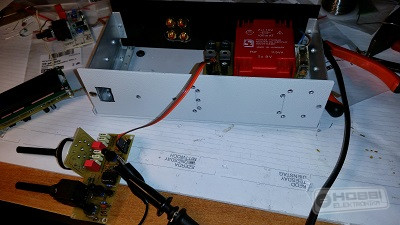

Még több kép az építésről

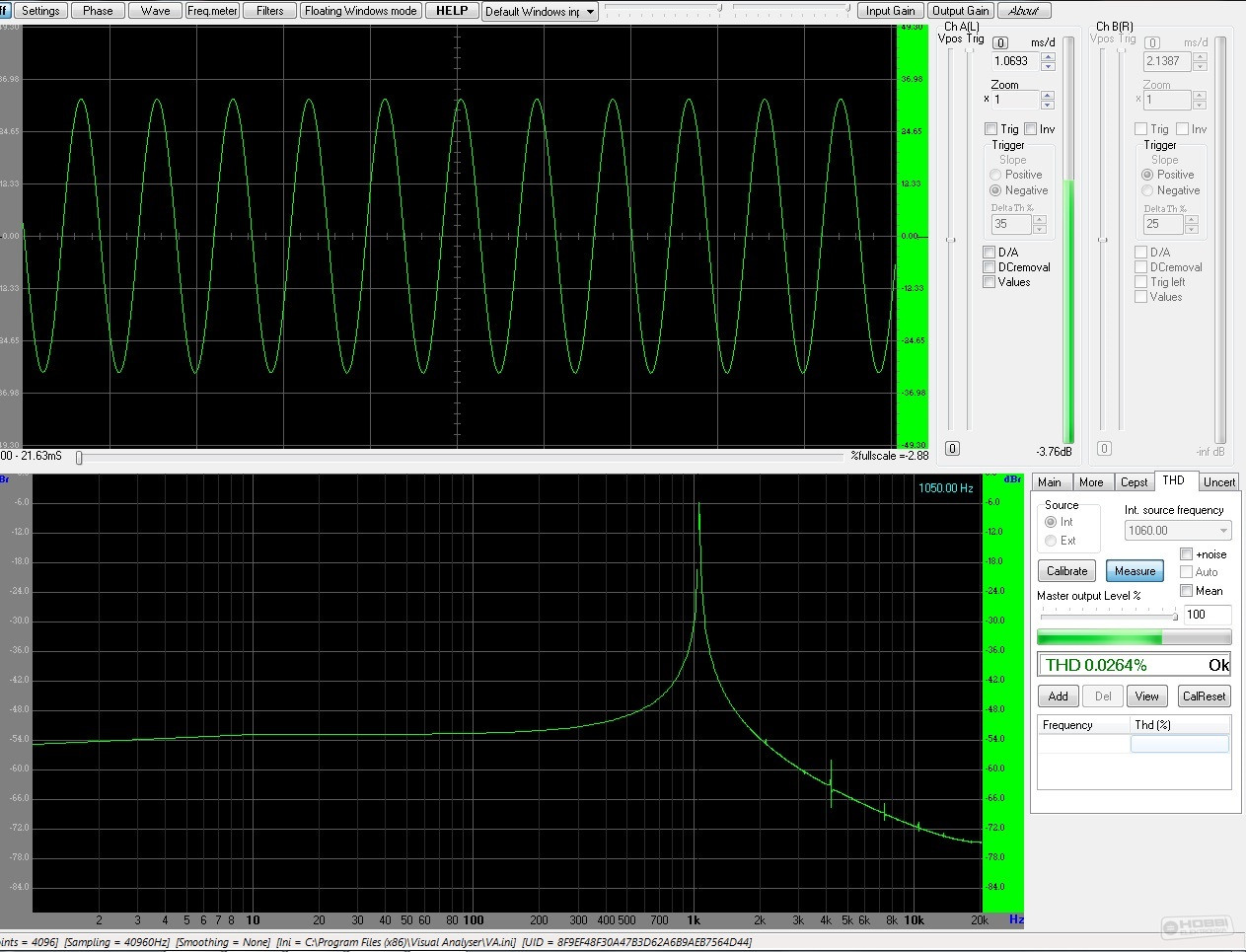

Végül egy kép egy mérésről, ahol a teljes harmónikus torzítást (THD) mérem.
![meres_index.jpg meres_index.jpg](/cikkek/files/1685/meres_index.jpg)
